Lincoln SA-200 SA-250 3-Gauge Kit for Magneto System

Lincoln SA-200 SA-250 3-Gauge Kit for Magneto System

Be the first to review this product

Availability: In stock

$219.04

Quick Overview

This is a 3-Gauge Kit consisting of Murphy Ammeter, Murphy Temperature (mechanical), and Murphy Oil Pressure Gauges. The kit contains the gauges and fittings for an SA-200 or SA-250 (with mechanical Temperature) Lincoln Pipeliner portable welder. Use 12-gauge automotive wire to/from the Ammeter and 14-gauge automotive wire on everything else.
THIS GAUGE SETUP IS DESIGNED TO SHUT-OFF YOUR WELDER IN CASE OF LOW OIL PRESSURE OR A HIGH COOLANT TEMPERATURE SITUATION.
***** VERY IMPORTANT *****
Follow the directions included with the gauges to set the oil pressure trip to just under 15 psi and coolant temperature trip to 235 deg F to shut-off your welder!!
**********
There is a viewable wiring diagram shown at the left for the basic magneto.
Call us with any questions 602-850-7399.

* Required Fields

$219.04
Free Shipping

Additional Information

SKU BW1984-K / BW1997-K
Free Shipping Yes
Welder Lincoln SA-200

Details

This is a 3-Gauge Kit consisting of Murphy Ammeter, Murphy Temperature (mechanical), & Murphy Oil Pressure Gauges and fittings for an SA-200 or SA-250 (with mechanical Temperature) Lincoln Pipeliner welder.
THIS GAUGE SETUP IS DESIGNED TO SHUT-OFF YOUR WELDER IN CASE OF LOW OIL PRESSURE OR A HIGH COOLANT TEMPERATURE SITUATION.
***** VERY IMPORTANT *****
Follow the directions included with the gauges to set the oil pressure trip to just under 15 psi and coolant temperature trip to 235 deg F to shut-off your welder!!
**********

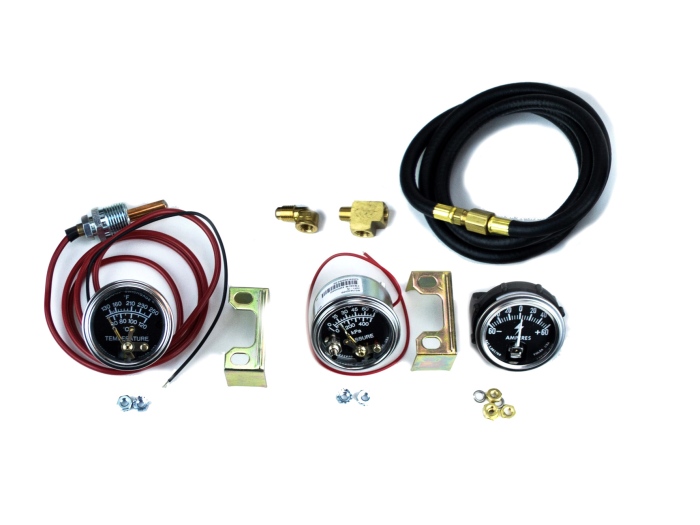

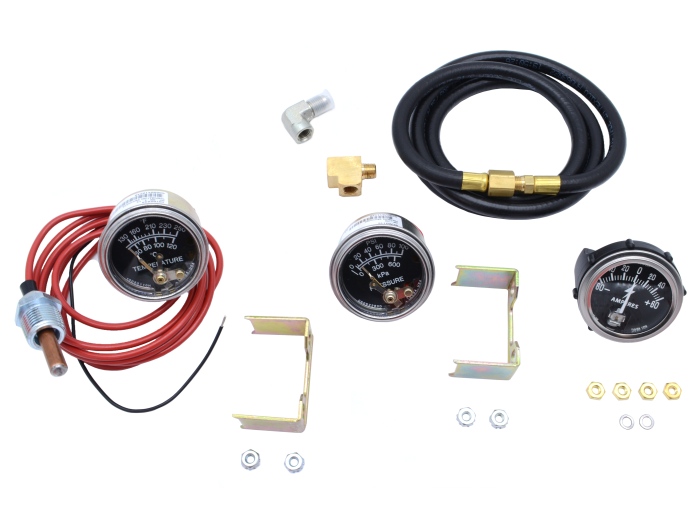

The Kit contains:
1 – Murphy Ammeter +/-60Amp Gauge  BW296
1 – Murphy Temperature Gauge
      BW1984-K is for SA-200:  BW165
      BW1997-K is for SA-250:  BW351
1 – 56-inch Braided Brass Hose Assembly  BW56
1 – Run Tee, 1/8 Brass Fitting  BW207
1 – Brass Elbow Pipe Fitting  BW525
1 – Murphy Oil Pressure Gauge (0-75 psi)  BW228

Call us with any questions 602-850-7399.
