Lincoln SA-200 SA-250 4-Gauge Kit for Magneto System

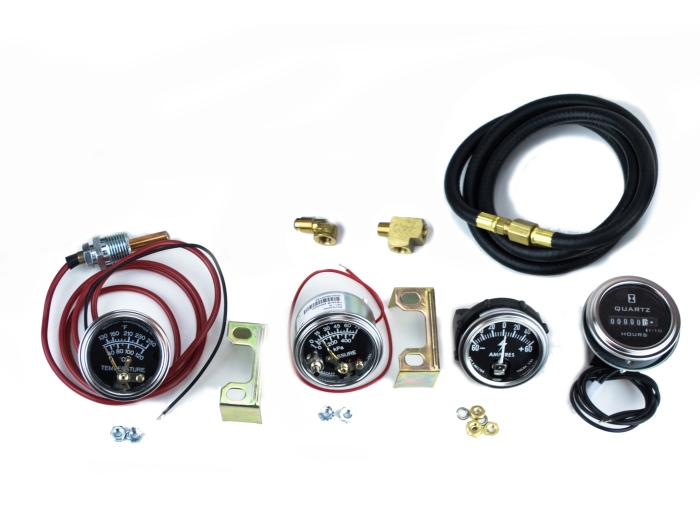

This is a 4-Gauge Kit consisting of Murphy Ammeter, Murphy Temperature (mechanical), Hour Meter, and Murphy Oil Pressure Gauges. Kit contains the gauges and fittings for an SA-200 or SA-250 (with mechanical Temperature) Lincoln Pipeliner portable welder. Use 12-gauge automotive wire to/from the Ammeter and 14-gauge automotive wire on everything else.
THIS GAUGE SETUP IS DESIGNED TO SHUT-OFF YOUR WELDER IN CASE OF LOW OIL PRESSURE OR A HIGH COOLANT TEMPERATURE SITUATION.
***** VERY IMPORTANT *****
Follow the directions included with the gauges to set the oil pressure trip to just under 15 psi and coolant temperature trip to 235 deg F to shut-off your welder!!
There is a viewable wiring diagrams shown at the left for the basic 4-gauge setup.
See our other Murphy products and kits here.
Call us with any questions 602-850-7399.
