SA-200 & SA-250(DC Only) High DC-Voltage Remote Control Pigtail Kit

$143.37
In stock
SKU
BW934A1

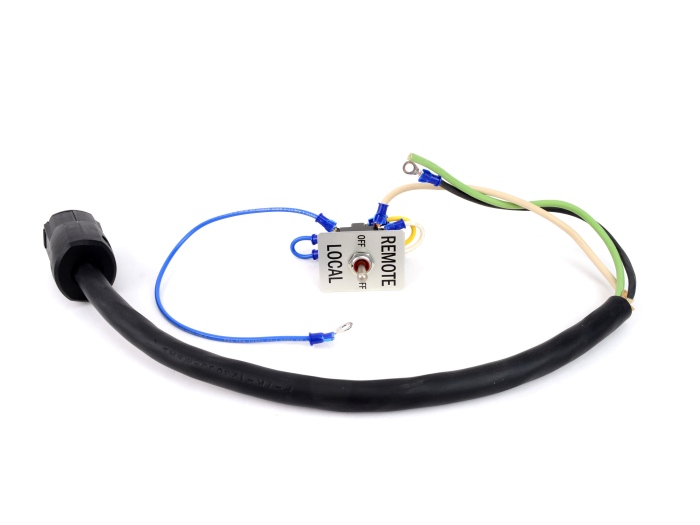

Remote Control Pigtail Kit for an SA-200 & SA-250 (DC ONLY - has a single 120V receptacle - i.e. not a duplex receptacle), and Classic I.

DESIGNED AND BUILT IN THE USA.

Wishing you could switch to Remote while your engine is running? This kit will allow you to do that. This kit has a double-pole, silver alloy contacts Toggle Switch designed for the high DC voltage that runs through your shunts. This switch is rated for 20A 250VDC and will last longer than the regular switch.
This Remote Kit replaces your existing receptacle. It works as both a 110V outlet and remote box connector. This kit uses a high-quality hospital grade 20A receptacle.

NOTE: While the engine is running, the Remote should be plugged-in BEFORE switching to Remote from Local or Off. Not plugging in the Remote first will result in arcing and voltage loss at the remote plug or extension cord plug. While this switch will handle switching while the motor is running, when possible, it is still recommended that you follow the normal procedure of plugging in the remote before starting the motor.

Need a new DC Remote Box then click here.
Check out all our REMOTE Equipment and Kits here.

Call us with any questions at 602-850-7399.

More Information
Free ShippingYes
WelderLincoln SA-200, Lincoln SA-250, Lincoln Classic 1
