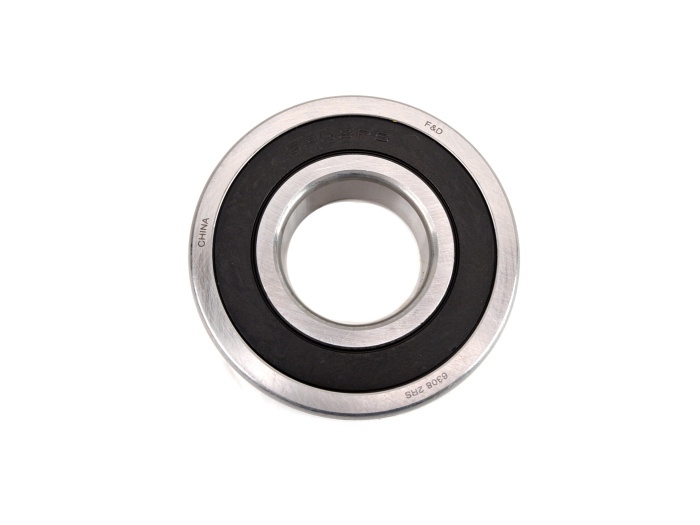

MAIN ARMATURE BEARING 6308

MAIN ARMATURE BEARING  6308

Be the first to review this product

Availability: In stock

$35.39

Quick Overview

This is the MAIN ARMATURE BEARING for SA-200. Fits most Red Face and Short Hood welders and some Black Face welders. There are two different bearings that were used and this is the larger of the two. The Outside Diameter of this Bearing is approximately 3.54 inches (a little under 3 9/16 inches) or 90mm.
If your bearing is smaller then check out this 6208 bearing.

This bearing also fits the following machines:
Classic 300D (Kubota), machine codes: 11547, 11548, 11642, 11643
Classic 300D (Perkins), machine codes: 11248, 11280, 11411, 11472, 11545, 11572, 11573, 11640, 11641
Classic 300D WFM (Perkins), machine codes: 11111, 11249, 11281, 11412, 11473, 11546
Classic 300G, machine codes: 10659, 10912, 11135
Classic II, machine code: 9805
Classic III (Cont TM27), machine codes: 10033, 10072
Classic IIID (TMD27), machine codes: 10061, 10156
SA-250 (Perkins 3.152), machine codes: 10073, 10074, 9435, 9436
SA-250 (Perkins), machine codes: 9557, 9558, 9599, 9605
SA-250, machine codes: 9570, 9571
SA-250 D3.152 (Perkins), machine codes: 9022, 9023
SA-350 3.152 (Perkins), machine codes: 9007, 9008, 9323, 9327, 9336, 9440, 9441


Please call with any questions 602-850-7399.

* Required Fields

$35.39
Free Shipping

Additional Information

SKU BW196
Free Shipping Yes
Welder Lincoln SA-200, Lincoln SA-250, Lincoln SA-350, Lincoln Classic 2, Lincoln Classic 3, Lincoln Classic 300D

Details

This is the MAIN ARMATURE BEARING for SA-200. Fits most Red Face and Short Hood welders and some Black Face welders. There are two different bearings that were used and this is the larger of the two. The Outside Diameter of this Bearing is approximately 3.54 inches (a little under 3 9/16 inches) or 90mm.
If your bearing is smaller then check out this 6208 bearing.

This bearing also fits the following machines:
Classic 300D (Kubota), machine codes: 11547, 11548, 11642, 11643
Classic 300D (Perkins), machine codes: 11248, 11280, 11411, 11472, 11545, 11572, 11573, 11640, 11641
Classic 300D WFM (Perkins), machine codes: 11111, 11249, 11281, 11412, 11473, 11546
Classic 300G, machine codes: 10659, 10912, 11135
Classic II, machine code: 9805
Classic III (Cont TM27), machine codes: 10033, 10072
Classic IIID (TMD27), machine codes: 10061, 10156
SA-250 (Perkins 3.152), machine codes: 10073, 10074, 9435, 9436
SA-250 (Perkins), machine codes: 9557, 9558, 9599, 9605
SA-250, machine codes: 9570, 9571
SA-250 D3.152 (Perkins), machine codes: 9022, 9023
SA-350 3.152 (Perkins), machine codes: 9007, 9008, 9323, 9327, 9336, 9440, 9441

Please call with any questions 602-850-7399.
